Deutsch HDP24-24-9SN-L015 HDP20 Series 9 Socket Receptacle

Skip to the end of the images gallery

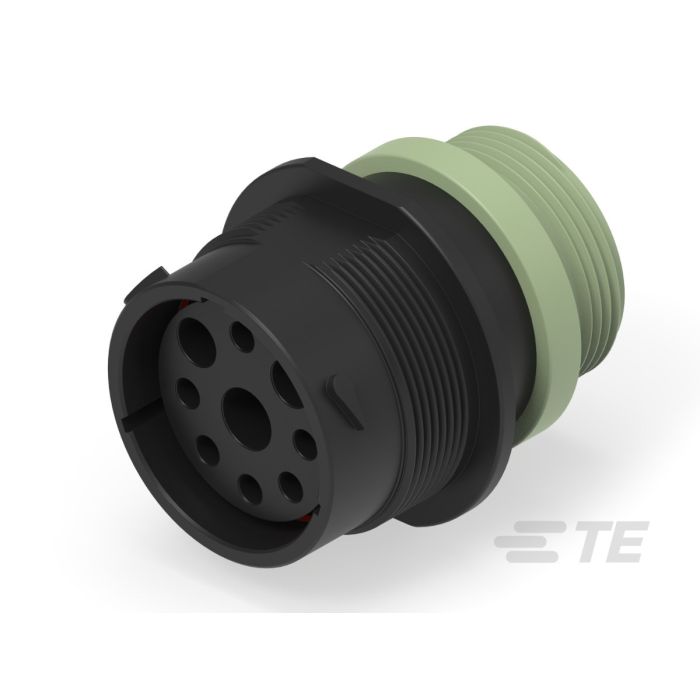

main product photo

Skip to the beginning of the images gallery

Deutsch HDP24-24-9SN-L015 HDP20 Series 9 Socket Receptacle

Be the first to review this product

Special Price $34.97 Regular Price $36.43

In stock

SKU

HDP24-24-9SN-L015

Deutsch HDP24-24-9SN-L015 HDP20 Series 9 Socket Receptacle is available to buy in increments of 1

Deutsch HDP24-24-9SN-L015 HDP20 Series 9 Socket Receptacle

Deutsch HDP24-24-9SN-L015 HDP20 Series 9 Socket Receptacle

Features & Details

Series: HDP20 Series
Cavities: 9
Contact Size: 4, 8, 12
Current Rating: 100, 60, 25

Technical Details

Part Number:	HDP24-24-9SN-L015
Series:	HDP20 Series
Insulation:	(#4).280-.292 [7.11-7.42], (#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32]
Wire Size:	6, 8, 10, 12, 14
Keyed:	No
Color:	Black
Material:	Plastic
Shape:	Circular
Connector Style:	Receptacle
Cavities:	9
Contact Size:	4, 8, 12
Shell Size:	24 shell
Special Features:	Reverse
Seal Size:	N seal
Current Rating:	100, 60, 25
Holds Pin/Socket:	Socket
Modification:	Threaded Adapter
Flange/In-line/PCB Mount:	Flange, In-line

More Information

More Information
Manufacturer	Deutsch
Cavities	9
Series	HDP20 Series
Contact Size	4 (100 Amps), 8 (60 Amps)
Current Rating (Amps)	100 Amps
